In the verification of voltage transformer, it is used to simulate the secondary load of the transformer under test

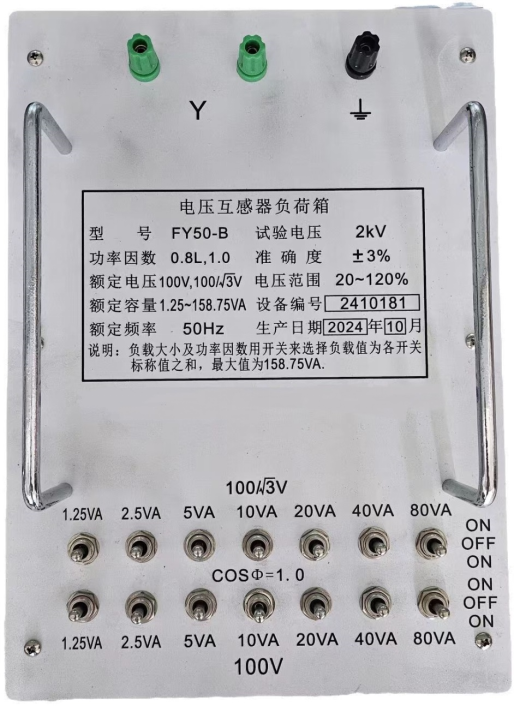

Key Features of Voltage Load Box: Connect the Y-terminal voltage load on the back panel of this device between terminals a and x of the test voltage transformer; adjust the load to the actual secondary load of the test voltage transformer; customizable load boxes with specific requirements can be provided according to user specifications.
Altitude: <1500m
Power frequency: 50Hz
Rated capacity: 1.25VA-158.75VA
Measurement range: 20%-120%
Secondary voltage: 100/√3V,110/√3V,100V,110V
Power factor: 0.8, 1.0
Accuracy: ±3%
